Floating fish food making machine

Author:小编Time:2022-02-22Views:

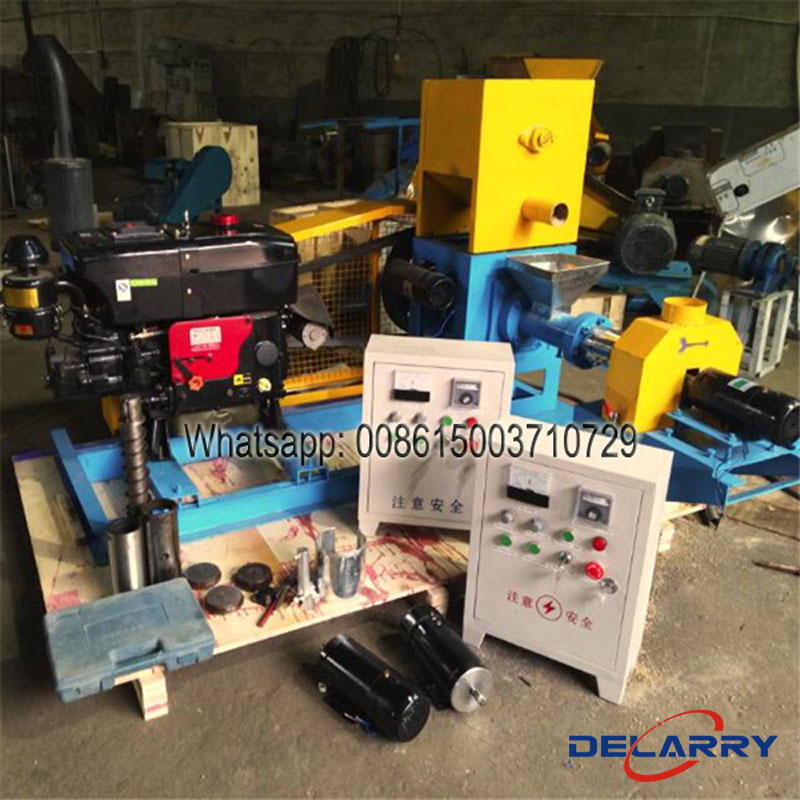

Brief introduction of pet floating fish food extruder machine:

This machine is a professional feed extruder equipment, raw materials can be soybean meal, rapeseed, rice bran, fish meal, bone meal, corn meal, flour and so on.

floating fish food machine 1.jpg

Application and features of Floating fish feed pellet extruder machine:

1. The finished pellets can keep floating more than 12 hours without pollution to water.

2. The floating fish feed pellet extruder machine can make pellet from Φ0.6mm-20mm just by changing the mold.

3. As the material is sent into feeding device, it will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized.This will make the pellets easily to digest.

4. The cutting device can be adjusted to make pellets of different length.

floating fish food machine 2.jpg

Main technicial parameters:

ModelCapacity
(t/h)
Main power
(kw)
Feeding power
(kw)
Screw diameter
(mm)
Cutting power
(kw)
DGP40-C0.03-0.045.50.4Φ400.4
DGP50-C0.06-0.08110.4Φ500.4
DGP60-C0.12-0.15150.4φ600.4
DGP70-B0.18-0.218.50.4φ700.4
DGP80-B0.2-0.25220.4φ800.6
DGP90-B0.32-0.35370.6φ900.8
DGP120-B0.5-0.6551.1φ1202.2
DGP135-B0.7-0.8751.1φ1332.2
DGP160-B1-1.2901.5φ1552.2
DGP200-B1.8-2.01321.5φ1953

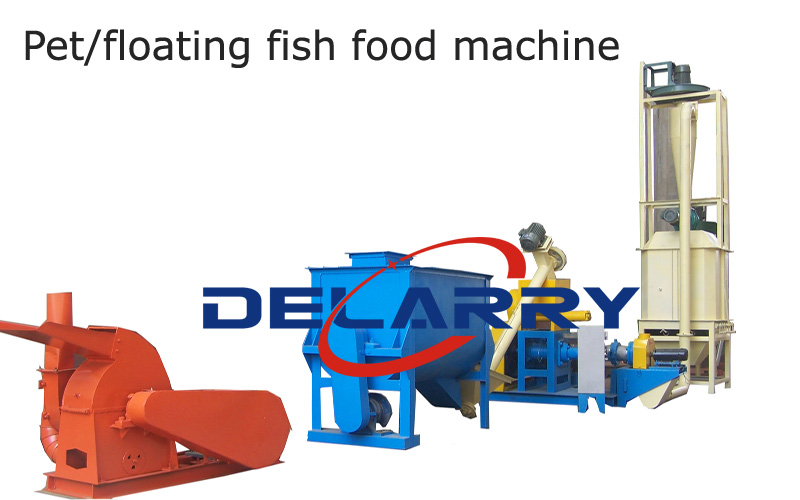

fish food production line.jpg

floating fish food machine 3.jpg

floating fish food machine 5.jpg

We also have the wet type fish feed extruder machine, the wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

floating fish food machine 8.jpg

Test video link:

https://youtu.be/fDQ83DeuqzI
